Matrix Calculator with Matlab-like Syntax

Introduction

Matrix Calculator is simple calculator that can perform various matrix operations. It is developed using the C programming language and a recursive descent parser. The calculator provides efficient matrix operations, enabling users to perform various computations. The calculator can perform the following operations:

void SET_U_NOT(var *opvar);
void SET_U_EIGHTCOUNT(var *opvar);
void SET_B_AND(var *ov1, var *ov2);
void SET_B_OR(var *ov1, var *ov2);
void SET_B_GREATER(var *ov1, var *ov2);
void SET_B_LESS(var *ov1, var *ov2);
void SET_B_ADD(var *ov1, var *ov2);
void SET_B_TIMES(var *ov1, var *ov2);
void SET_B_EQUALS(var *ov1, var *ov2);

CREATE and PRINT

The calculator can create and print matrices, also read matrix from local file. The following Matlab-like code creates a 1 matrix and prints it.

input:

BEGIN {
   ONES 1 5 $A
   READ "test/example/Hblock.arr" $B
   PRINT "array_A:"
   PRINT $A
   PRINT "array_B:"
   PRINT $B
}

output:

array_A:
1 1 1 1 1
array_B:
0 0 0 0 0
0 1 0 1 0
0 1 1 1 0
0 1 0 1 0
0 0 0 0 0

Overwrite the varibles

input:

BEGIN {
   ONES 1 5 $A
   PRINT "array_A:"
   PRINT $A
   READ "test/example/Hblock.arr" $A
   PRINT "array_A:"
   PRINT $A
   ONES 1 1 $A
   PRINT "also_array_A:"
   PRINT $A
}

output:

array_A:
1 1 1 1 1
array_A:
0 0 0 0 0
0 1 0 1 0
0 1 1 1 0
0 1 0 1 0
0 0 0 0 0
Also_array_A:
1

Loop

Nested Loop is also supported. input:

BEGIN {
    SET $A := 0 ;
        LOOP $I 3 {
            LOOP $J 3 {
                SET $A := $I $J B-TIMES ;
                PRINT $A
        }
    }
    PRINT $I
    PRINT "DONE"
}

output:

output:
1
2
3
2
4
6
3
6
9
3
DONE

Interate loop counter (works like for loop in a assembly way)

input:

BEGIN {
   LOOP $I 10 {
      SET $I := $I 1 B-ADD ; PRINT $I
   }
}

output:

output:
2
4
6
8
10

SET & Conway's game of Life

Via the SET operation, I implement the Conway's game of Life. The following code is the Conway's game of Life.

For SET instruction, I test every <UNARYOP> and <BINARYOP> , also check multiple intake $[A-Z] varibles.

lifegame with 4 iteration example

input:

BEGIN {
   READ "test/example/lglider.arr" $A
   LOOP $I 4 {
      SET $B := $A U-EIGHTCOUNT ;
      SET $D := $B 3 B-EQUALS ;
      SET $C := $B 2 B-EQUALS $D B-OR $A B-AND ;
      SET $E := $A U-NOT $D B-AND $C B-OR ;

      PRINT $I
      PRINT $E
      SET $A := $E ;
   }
}

output:

output:
1
0 0 0 0 0
0 0 1 0 0
0 0 1 0 0
0 0 1 0 0
0 0 0 0 0
2
0 0 0 0 0
0 0 0 0 0
0 1 1 1 0
0 0 0 0 0
0 0 0 0 0
3
0 0 0 0 0
0 0 1 0 0
0 0 1 0 0
0 0 1 0 0
0 0 0 0 0
4
0 0 0 0 0
0 0 0 0 0
0 1 1 1 0
0 0 0 0 0
0 0 0 0 0

set1.nlb:

BEGIN {
    READ "test/example/Hblock.arr" $A
    ONES 5 5 $B
    SET $A := $A U-EIGHTCOUNT ;
    SET $B := $B U-NOT ;
    PRINT "u-eight-of-h-block"
    PRINT $A
    PRINT "allzero5x5"
    PRINT $B

    READ "test/data/random.arr" $A
    SET $A := $A 3 B-GREATER ;
    PRINT "random"
    PRINT $A

    READ "test/data/random.arr" $A
    SET $A := $A 3 B-LESS ;
    PRINT "random2"
    PRINT $A

    READ "test/data/random.arr" $A
    SET $A := $A 3 B-TIMES ;
    PRINT "random3"
    PRINT $A
}

output:
u-eight-of-h-block
1 1 2 1 1
2 2 5 2 2
3 3 6 3 3
2 2 5 2 2
1 1 2 1 1
allzero5x5
0 0 0 0 0
0 0 0 0 0
0 0 0 0 0
0 0 0 0 0
0 0 0 0 0
random
1 0 0 1
0 0 0 0
0 0 0 1
1 0 0 0
random2
0 1 0 0
1 1 1 0
1 1 0 0
0 1 1 1
random3
15 0 9 18
3 6 0 9
0 3 9 21
24 3 3 3

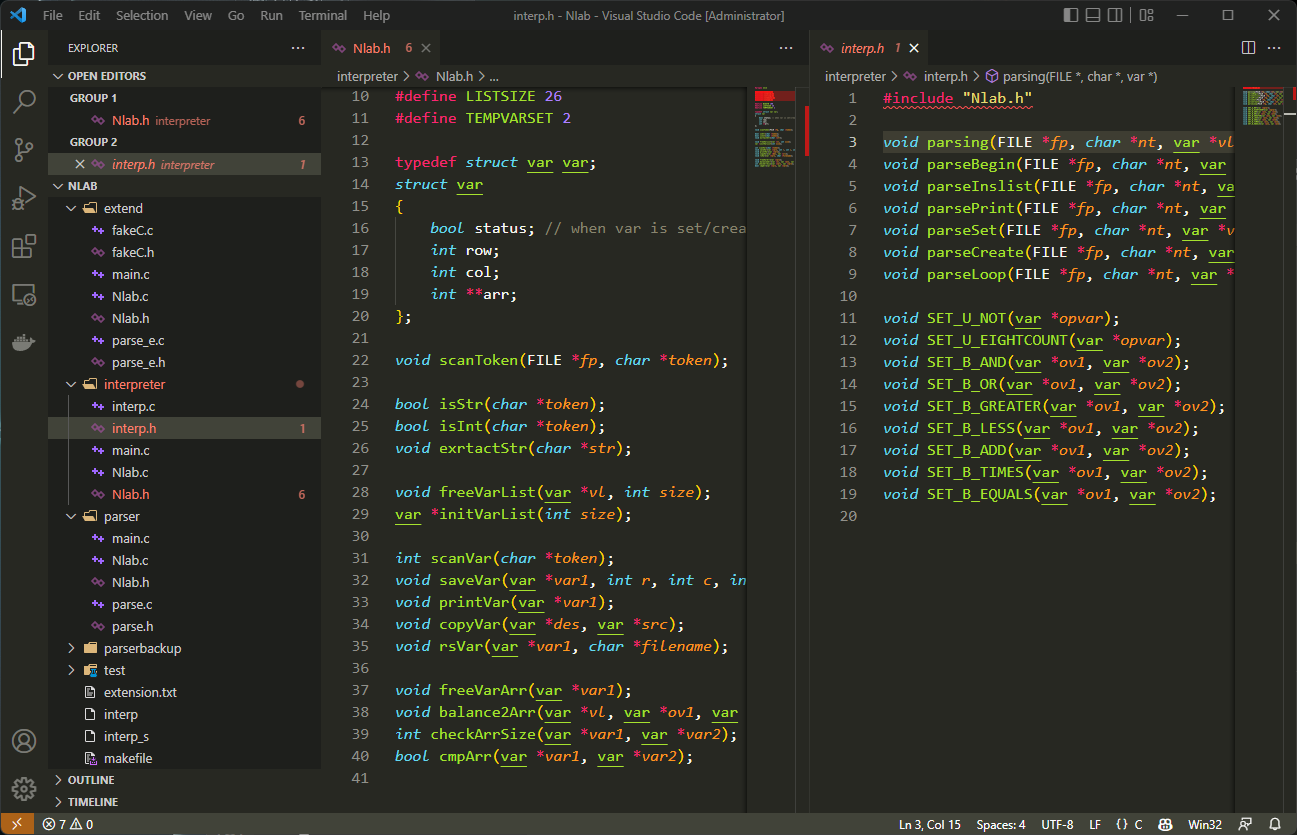

The Project folder
